Products >> Terminal Block >> Pluggable Type

  • 5.08mm Male Through Wall Type
  • 5.08mm Male Through Wall Type
  • 5.08mm Male Through Wall Type
  • 5.08mm Male Through Wall Type
5.08mm Male Through Wall Type 5.08mm Male Through Wall Type 5.08mm Male Through Wall Type 5.08mm Male Through Wall Type

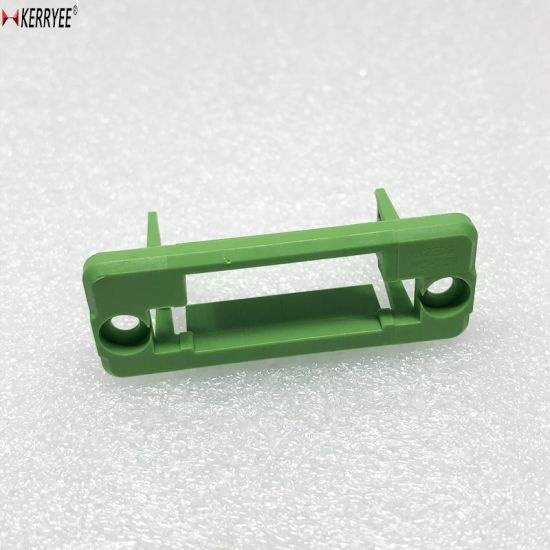

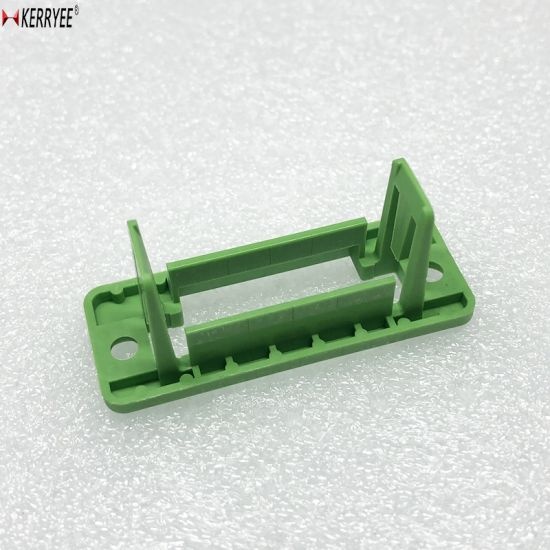

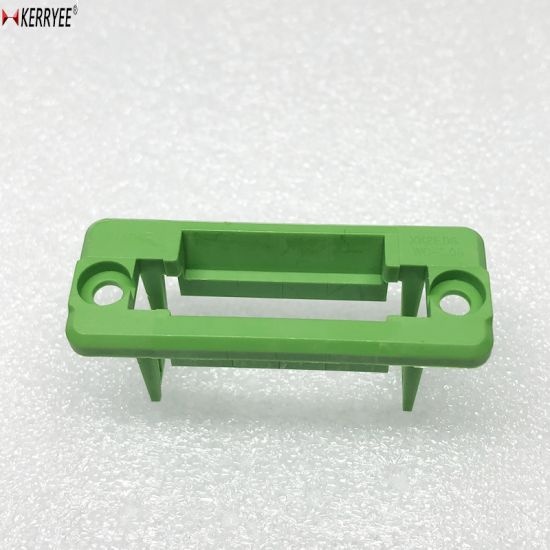

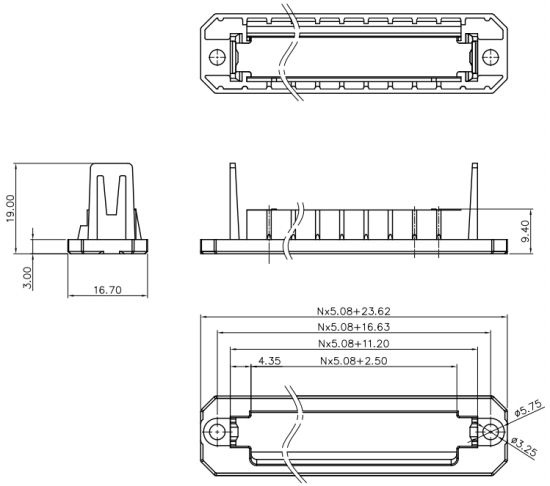

5.08mm Male Through Wall Type

Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min.

Mechanical
Temp. Range: -40ºC~+105ºC
Max Soldering: +250ºC for 5 Sec.

Material
Contact: Brass,Sn Plated
Housing: PA66, UL94V-0

Previous Product：5.08mm Din Rail Plug terminal block Next Product：5.00mm &5.08mm Female Pluggable Type
