Products >> Terminal Block >> Pluggable Type

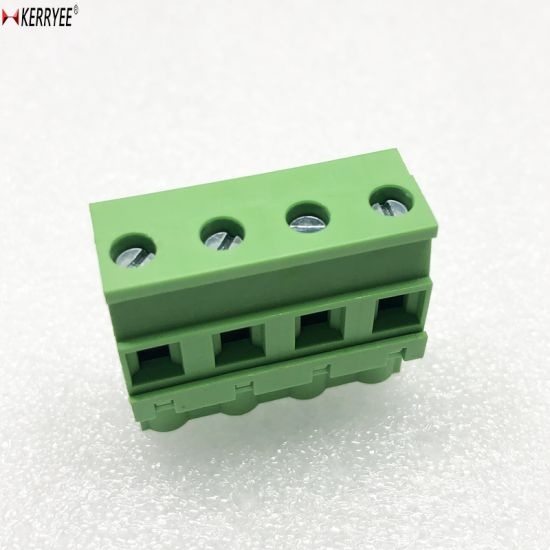

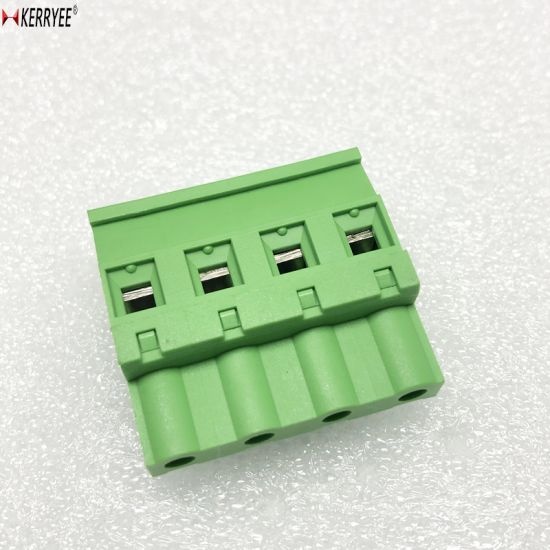

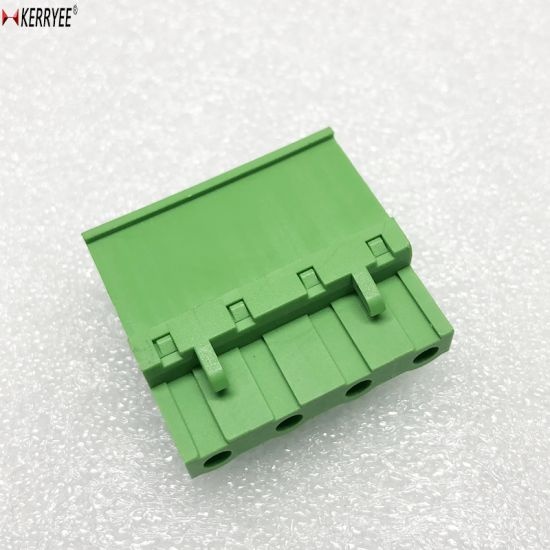

7.50mm &7.62mm Female Pluggable type
- Product No.：KY2KB-7.50&7.62
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range: 28-14AWG 2.5mm²
Material
Contact: Brass,Sn Plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
Torque: 0.5Nm (3lb.in)
Strip length: 7-8mm
