Products >> Terminal Block >> Barrier Type

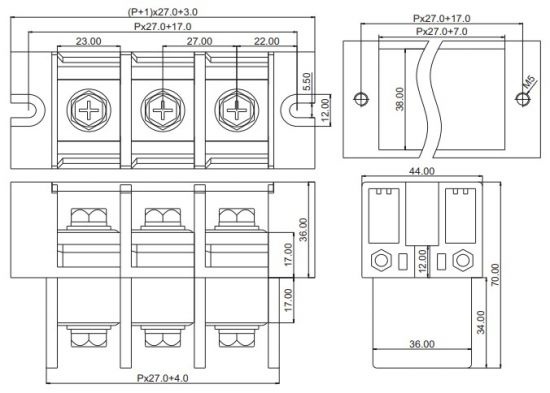

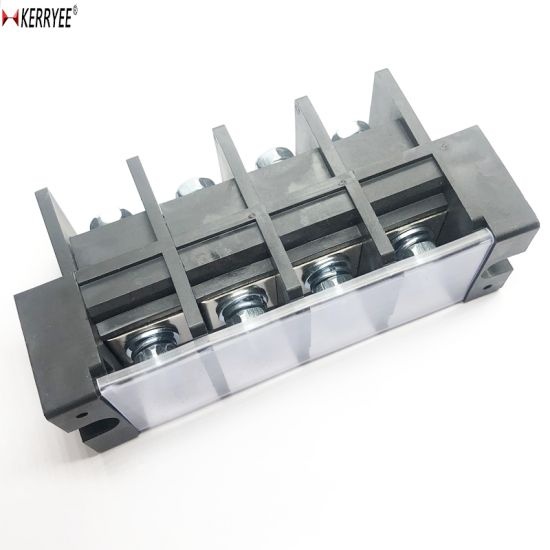

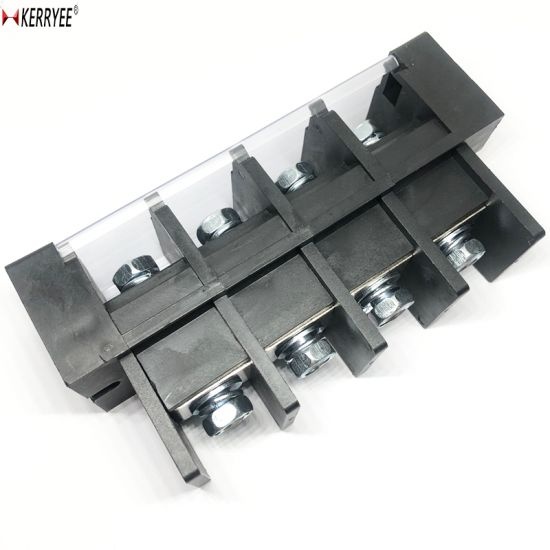

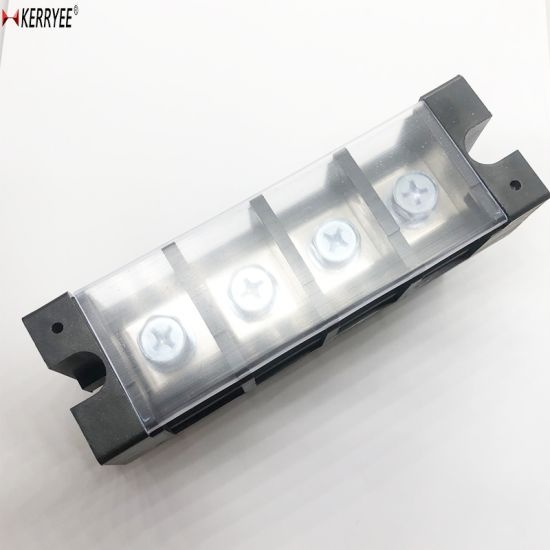

27.0mm Barrier Type
- Product No.：KYKT8-11-27.00
Electrical
Material
Mechanical
Rated voltage: 600V
Rated current: 170A
Contact resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC6000V/Min
Wire range: 22-20AWG
Screw: M3 Steel, Zinc plated
Terminal: Brass, Sn plated
Housing: PBT, UL94V - 0
Temp. Range: -40ºC~+120ºC
Torque : 7ibf·in
Next Product：Barrier BYD Type
