Products >> Terminal Block >> Barrier Type

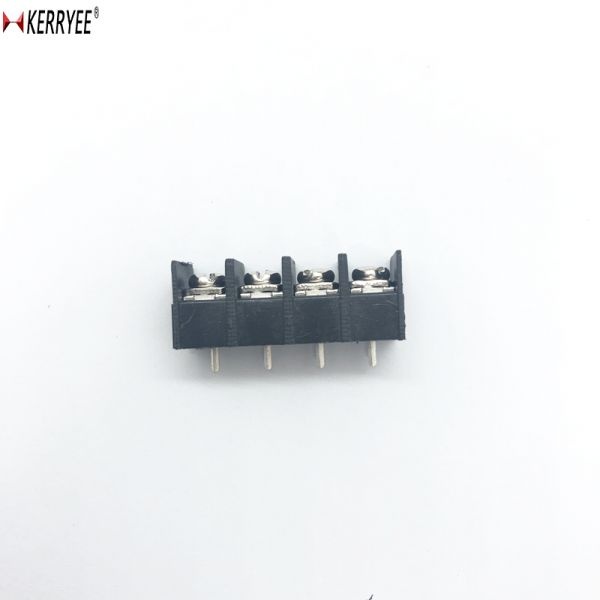

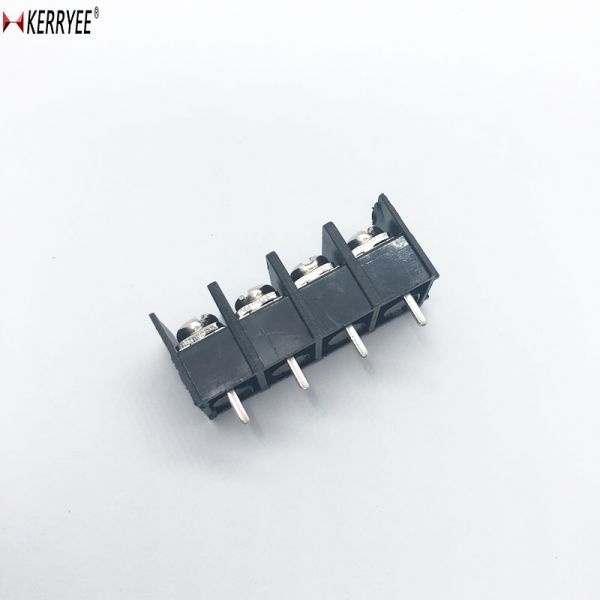

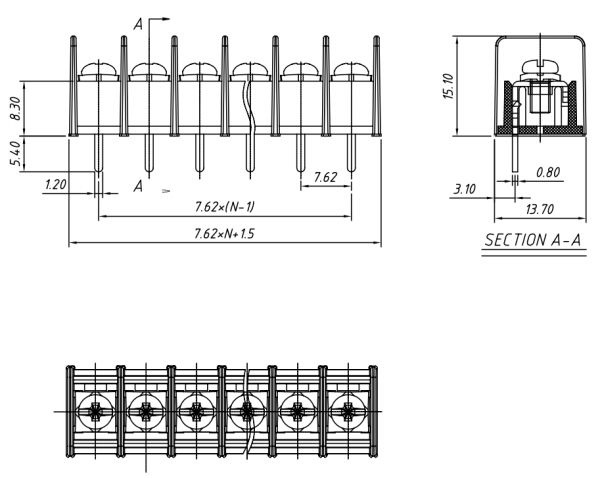

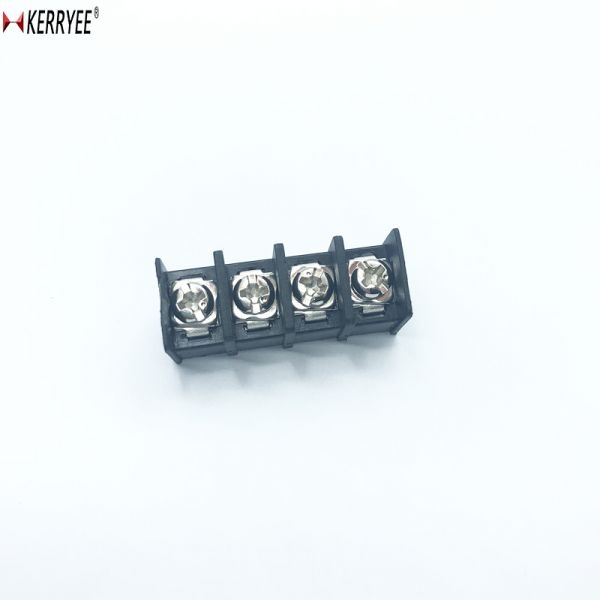

7.62mm Barrier Side Pin Type
- Product No.：KY25B-7.62
Electrical
Material
Mechanical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 22-14AWG 2.5mm²
Screw: M3.5 Steel, Zinc plated
Terminal: Brass, Sn plated
Housing: PA66, UL94V - 0
Temp. Range: -40ºC~+105ºC
Torque : 5.1kgf-cm/4.4Lbin
