Products >> Terminal Block >> Barrier Type

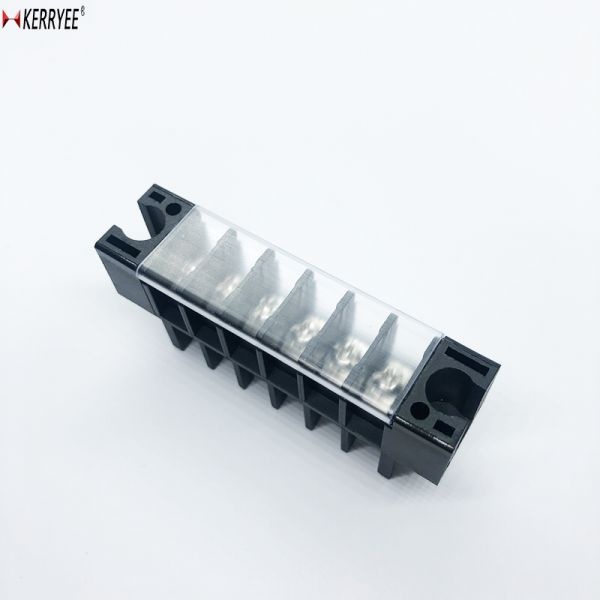

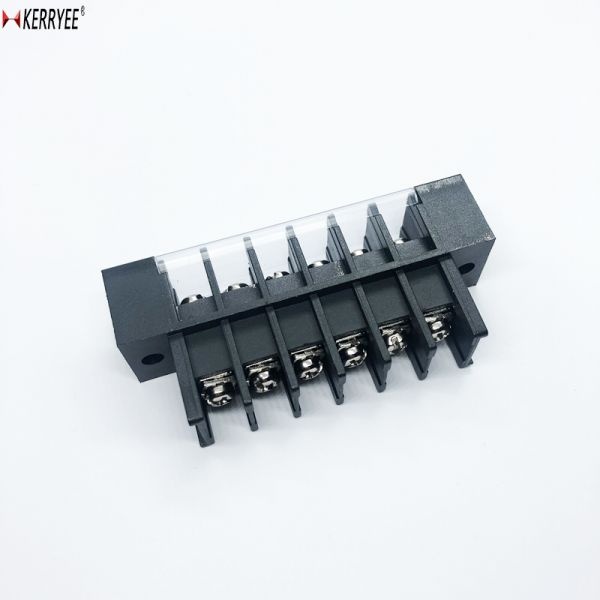

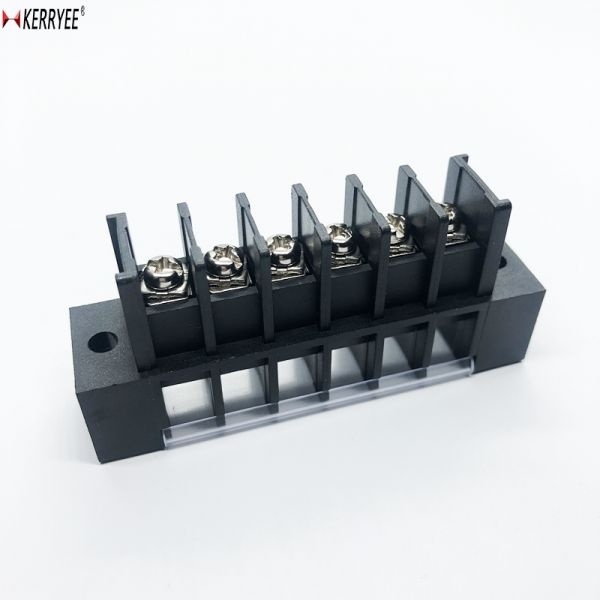

8.50mm Barrier Type
- Product No.：KYKT8-6-8.50
Electrical
Material
Mechanical
Rated voltage: 600V
Rated current: 20A
Contact resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 22-12AWG
Screw: M3 Steel, Zinc plated
Terminal: Brass, Sn plated
Housing: PBT, UL94V - 0
Temp. Range: -40ºC~+120ºC
Torque : 7ibf·in
Previous Product：Barrier BYD Type
Next Product：Barrier TC Type
